Application REST API

First released in version: 3.2

A web API serving UDM objects/properties

Summary

Application REST API is an http base API allowing the viewing or creation of objects and properties from the UDM.

Application REST API:

Provides an interface to the Ubisense platform without requiring knowledge of or access to Ubisense protocols
Allows for easy access to the platform information without needing to write software. This is useful for viewing information in a one time/non-automated fashion or when writing lightweight web scripts

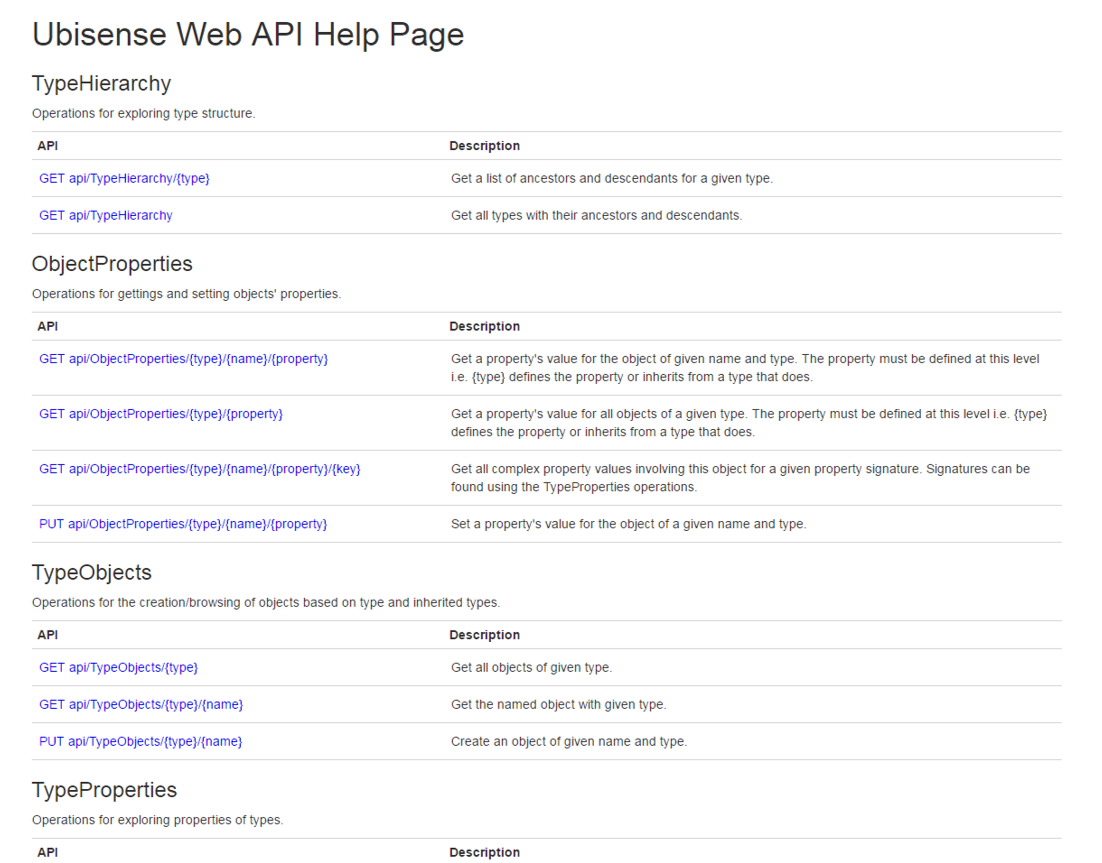

Example Ubisense Web API Help Page

Using the Application REST API

Overview

The Application REST API allows you to view or create objects and properties in your user data model. Once you have installed the REST API, you can view and interact with the Swagger Doc, use Bearer authentication and send requests to the API endpoints.

Authentication

From version 3.8 SP5, the SmartSpace Application REST API supports Bearer authentication. From version 3.9, the REST API requires authentication by default. The two OAuth flows that Ubisense support are Authorization Code Flow with PKCE and Client Credentials flow.

Depending on the OAuth method that you use, you need to set up either a role or scope when configuring your authentication. If you are using the PKCE flow, you need to add a role called "smartspace-rest-api-access-role". Only users that are members of this role can access the REST API. If you are using the Client Credentials flow, you need to add a scope called "smartspace-api-scope". Only applications that are added to this scope can access the REST API.

Configuring the Application REST API

Once you have configured your authentication, you will have the basic information needed to configure the settings in the REST API. On Linux, these are configured in /etc/ubisense/restapi.json. On Windows, they are in localsettings.json in the REST API installation folder; this is normally C:\Program Files (x86)\Ubisense 3\WebApiCore\Web.

The following sections are needed in the REST API settings:

AllowHosts, to support CORS headers and allow access from external web pages
JWTAuth, to configure the application information, and
AuthOptions, to require authentication for all access

An example of the REST API settings is shown below. Replace the following parameters with values from your authentication configuration:

metadataAddress: The URL where your OpenID Connect configuration is published.
authority: The base URL of your authorization server.
audience: The identifier for your API that clients must include in their token requests.
nameClaim: The claim in the token that contains the username.
validIssuers: An array of issuer URLs that are considered valid. Tokens from other issuers will be rejected.
validateLifetime: A boolean value indicating whether the token’s lifetime should be validated.
requireHttpsMetadata: A Boolean value indicating whether HTTPS is required for the metadata endpoint.

Copy

1
2
3
4
5
6
7
8
9
"JWTAuth": {
  "metadataAddress": "https://<your-auth-server>/path/to/.well-known/openid-configuration",
  "authority": "https://<your-auth-server>",
  "audience": "<your-api-identifier>",
  "nameClaim": "preferred_username",
  "validIssuers": ["https://<your-auth-server>/path/to/issuer"],
  "validateLifetime": true,
  "requireHttpsMetadata": false
}

The parameter “validIssuers”: should be the list of valid issuers. For multi-tenant organizations, you may configure multiple valid issuers with different tenant IDs.

Once you have saved the settings, restart the REST API service, if using Linux, or the SmartSpaceCoreApi application pool, if using Windows/IIS.

Fetching the token

After configuring the REST API settings, you can fetch and use the JWT. The following code snippet shows an example of fetching and using the token for the Client Credentials flow in C#.

Copy

Fetching the token

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
internal class AuthenticationService{
    private readonly HttpClient _httpClient;
    public AuthenticationService(HttpClient httpClient)
    {
        _httpClient = httpClient;
    }
    public async Task<string> GetAccessTokenAsync(string clientId, string clientSecret, Uri tokenEndpointUri)
    {
        var clientCredentials = new FormUrlEncodedContent(new[]
        {
        new KeyValuePair<string, string>("grant_type", "client_credentials"),
        new KeyValuePair<string, string>("client_id", clientId),
        new KeyValuePair<string, string>("client_secret", clientSecret),
    });
        var response = await _httpClient.PostAsync(tokenEndpointUri, clientCredentials);
        response.EnsureSuccessStatusCode();
        var content = await response.Content.ReadAsStringAsync();
        var tokenResponse = JsonSerializer.Deserialize<Dictionary<string, object>>(content);
        return tokenResponse["access_token"].ToString();
    }
  }

Copy

Using the returned token

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
var accessToken = await _authenticationService.GetAccessTokenAsync(
    "sample-console-app",
    "<client_secret>",//Replace this with the client secret. This is a secret and should be treated as such in production scenarios
    new Uri("<token-endpoint-url>") // Replace with your token endpoint url
  );
  _httpClient.DefaultRequestHeaders.Authorization = new AuthenticationHeaderValue("Bearer", accessToken);
  const string apiUrl = "http://localhost:5001/api/TagTypes";
  var response = await _httpClient.GetAsync(apiUrl);
  if (response.IsSuccessStatusCode)
  {
      var content = await response.Content.ReadAsStringAsync();
      Console.WriteLine("Response Content:\n" + content);
  }
  else
  {
      Console.WriteLine($"Error: {response.StatusCode}");
  }

An API specification JSON file is provided which can be used to generate your client code. The file can be found at http://localhost/smartspaceapi and clicking the link under the title.

download link for the API secification json file

Requests and endpoints

This section provides an overview of the requests and endpoints needed to view or create objects and properties in your user data model. Navigate to http://localhost/smartspaceapi to view the Swagger Doc and interact with the requests.

ObjectLocations

GET /api/ObjectLocations/{type}

Get the locations of all objects of the given type.

Parameters

Name	Type	Description
type (required)	string	The object type
object_names	string	A comma-separated list of object names, with illegal URL characters escaped using the same schema as standard URI encoding, but with a ~ instead of a %

Responses

Code	Description
200	Success Copy Example Value `[ { "Object": "string", "X": 0, "Y": 0, "Z": 0, "Theta": 0 } ]`
400	No objects with that type exist Copy Example Value `{ "type": "string", "title": "string", "status": 0, "detail": "string", "instance": "string" }`

PUT /api/ObjectLocations/{type}

Set the location of one or more objects of the given type.

Parameters

Name	Type	Description
type (required)	string	The object type

Request Body

A sequence of object locations to set.

Copy

Example Value

[
  {
    "Object": "string",
    "X": 0,
    "Y": 0,
    "Z": 0,
    "Theta": 0
  }
]

Responses

Code	Description
200	Success Copy Example Value `[ { "Object": "string", "X": 0, "Y": 0, "Z": 0, "Theta": 0 } ]`
400	The location could not be set Copy Example Value `{ "type": "string", "title": "string", "status": 0, "detail": "string", "instance": "string" }`

GET /api/ObjectLocations/{type}/{name}

Get the location of an object of the given name and type.

Parameters

Name	Type	Description
name (required)	string	The object name, with illegal URL characters escaped using the same schema as standard URI encoding, but with a ~ instead of a %
type (required)	string	The object type

Responses

Code Description

Code	Description
200	Success If no body is returned then no object of that type and name with a location exists Copy Example Value `[ { "Object": "string", "X": 0, "Y": 0, "Z": 0, "Theta": 0 } ]`
400	The type does not exist Copy Example Value `{ "type": "string", "title": "string", "status": 0, "detail": "string", "instance": "string" }`

200

Success

If no body is returned then no object of that type and name with a location exists

Copy

Example Value

[
  {
    "Object": "string",
    "X": 0,
    "Y": 0,
    "Z": 0,
    "Theta": 0
  }
]

400

The type does not exist

Copy

Example Value

{
  "type": "string",
  "title": "string",
  "status": 0,
  "detail": "string",
  "instance": "string"
}

ObjectProperties

GET /api/ObjectProperties/{type}/{property}

Get a property's value for all objects of the given type. The property must be defined at this level; {type} defines the property or inherits from a type that does.

Parameters

Name	Type	Description
type (required)	string	The object type
property (required)	string	The property name
object_names	string	A comma-separated list of object names, with illegal URL characters escaped using the same schema as standard URI encoding, but with a ~ instead of a %

Responses

Code	Description
200	The property values Copy Example Value `[ { "Object": "string", "PropertyName": "string", "PropertyValue": "string" } ]`
400	The type does not exist Copy Example Value `{ "type": "string", "title": "string", "status": 0, "detail": "string", "instance": "string" }`

GET /api/ObjectProperties/{type}/{name}/{property}

Get a property's value for the object of the given name and type. The property must be defined at this level; {type} defines the property or inherits from a type that does.

Parameters

Name	Type	Description
name (required)	string	The object name, with illegal URL characters escaped using the same schema as standard URI encoding, but with a ~ instead of a %
type (required)	string	The object type
property (required)	string	The property name

Responses

Code Description

Code	Description
200	Success If no body is returned then no object with that name, type and property exists Copy Example Value `[ { "Object": "string", "PropertyName": "string", "PropertyValue": "string" } ]`
400	The type does not exist Copy Example Value `{ "type": "string", "title": "string", "status": 0, "detail": "string", "instance": "string" }`

200

Success

If no body is returned then no object with that name, type and property exists

Copy

Example Value

[
  {
    "Object": "string",
    "PropertyName": "string",
    "PropertyValue": "string"
  }
]

400

The type does not exist

Copy

Example Value

{
  "type": "string",
  "title": "string",
  "status": 0,
  "detail": "string",
  "instance": "string"
}

PUT /api/ObjectProperties/{type}/{name}/{property}

Set a property's value for the object of the given name and type.

Note that if you set the name property of an object, the returned Object field will still use the original object name, though the return PropertyValue will be the new name.

Parameters

Name	Type	Description
name (required)	string	The object name, with illegal URL characters escaped using the same schema as standard URI encoding, but with a ~ instead of a %
type (required)	string	The object type
property (required)	string	The property name

Request Body

The property value.

Copy

Example Value

string

Responses

Code	Description
200	Success Copy Example Value `{ "Object": "string", "PropertyName": "string", "PropertyValue": "string" }`
400	The property could not be set Copy Example Value `{ "type": "string", "title": "string", "status": 0, "detail": "string", "instance": "string" }`

GET /api/ObjectProperties/{type}/{name}/{property}/{key}

Get all complex property values involving this object for the given property signature. Signatures can be found using the TypeProperties operations.

Parameters

Name	Type	Description
name (required)	string	The object name, with illegal URL characters escaped using the same schema as standard URI encoding, but with a ~ instead of a %
type (required)	string	The object type
property (required)	string	The property name
key (required)	integer	The position in the signature this item is located, starting at 1

Responses

Code Description

Code	Description
200	Success If no body is returned then no value for this type, object and property was found Copy Example Value `{ "Object": "string", "PropertySignature": "string", "PropertyType": "string", "PropertyKey": 0, "PropertyRows": [ { "PropertyKeys": [ "string" ], "PropertyValue": "string" } ] }`
400	The type does not exist, or an invalid key is used Copy Example Value `{ "type": "string", "title": "string", "status": 0, "detail": "string", "instance": "string" }`

200

Success

If no body is returned then no value for this type, object and property was found

Copy

Example Value

{
  "Object": "string",
  "PropertySignature": "string",
  "PropertyType": "string",
  "PropertyKey": 0,
  "PropertyRows": [
    {
      "PropertyKeys": [
        "string"
      ],
      "PropertyValue": "string"
    }
  ]
}

400

The type does not exist, or an invalid key is used

Copy

Example Value

{
  "type": "string",
  "title": "string",
  "status": 0,
  "detail": "string",
  "instance": "string"
}

POST /api/ObjectProperties

Bulk update multiple object properties. Supports setting both simple and complex property values in a single transaction. If any update fails, none of the updates will be applied.

Parameters

There are no parameters for this request.

Request Body

Array of property update requests to execute.

Copy

Example Value

{
  "Property": "string",
  "Keys": [
    "string"
  ],
  "Value": "string"
}

Responses

Code	Description
200	All updates executed successfully.
400	One or more property update request failed validation or execution. Copy Example Value `{ "type": "string", "title": "string", "status": 0, "detail": "string", "instance": "string" }`

PUT /api/ObjectComplexProperties/{type}/{property}/{key}

Set a complex property value.

Parameters

Name	Type	Description
type (required)	string	The object type
property (required)	string	The property name
key (required)	integer	The position in the signature this item is located, starting at 1

Request Body

The property value.

Copy

Example Value

{
  "PropertyKeys": [
    "string"
  ],
  "PropertyValue": "string"
}

Responses

Code	Description
200	Success
400	The property could not be set Copy Example Value `{ "type": "string", "title": "string", "status": 0, "detail": "string", "instance": "string" }`

ObjectTags

GET /api/TagTypes

Get the list of all tag types.

Parameters

There are no parameters for this request.

Responses

Code	Description
200	Returns the (possibly empty) list of tag types Copy Example Value `[ "string" ]`

GET /api/Tags/{tag}

Get information about a tag.

Parameters

Name	Type	Description
tag (required)	string	The tag ID

Responses

Code	Description
200	Returns information about the tag Copy Example Value `{ "Tag": "string", "Battery": "string", "Activity": "string", "TagType": "string", "Object": "string" }`
400	The tag ID was invalid

GET /api/ObjectTags/{type}

Get the associated tags for all objects of the given type.

Parameters

Name	Type	Description
type (required)	string	The object type
object_names	string	A comma-separated list of object names, with illegal URL characters escaped using the same schema as standard URI encoding, but with a ~ instead of a %

Responses

Code	Description
200	Success Copy Example Value `[ { "Object": "string", "Tag": "string", "Battery": "string", "Activity": "string", "TagType": "string", "TagPosition": { "X": 0, "Y": 0, "Z": 0 } } ]`
400	The type does not exist

GET /api/ObjectTags/{type}/{name}

Get the associated tag for an object of the given name and type.

Parameters

Name	Type	Description
name (required)	string	The object name, with illegal URL characters escaped using the same schema as standard URI encoding, but with a ~ instead of a %
type (required)	string	The object type

Responses

Code Description

Code	Description
200	Success If no body then no object of that type/name with a tag exists Copy Example Value `{ "Object": "string", "Tag": "string", "Battery": "string", "Activity": "string", "TagType": "string", "TagPosition": { "X": 0, "Y": 0, "Z": 0 } }`
400	The type does not exist

200

Success

If no body then no object of that type/name with a tag exists

Copy

Example Value

{
  "Object": "string",
  "Tag": "string",
  "Battery": "string",
  "Activity": "string",
  "TagType": "string",
  "TagPosition": {
    "X": 0,
    "Y": 0,
    "Z": 0
  }
}

400

The type does not exist

PUT /api/ObjectTags/{type}/{name}

Associate a tag with an object of the given name and type. This will override all pre-exisiting associations involving this tag or object. The object must already exist and the tag position "Origin" must be defined for this type.

Parameters

Name	Type	Description
name (required)	string	The object name, with illegal URL characters escaped using the same schema as standard URI encoding, but with a ~ instead of a %
type (required)	string	The object type
tag_type	string	The tag type name
position	string	The tag position in x,y,z notation

Request Body

The tag ID to associate.

Copy

Example Value

string

Responses

Code	Description
200	Association succeeded and the tag information is returned Copy Example Value `{ "Object": "string", "Tag": "string", "Battery": "string", "Activity": "string", "TagType": "string", "TagPosition": { "X": 0, "Y": 0, "Z": 0 } }`
400	The tag association failed

TypeHierarchy

GET /api/TypeHierarchy

Get all types with their ancestors and descendants.

Parameters

There are no parameters for this request.

Responses

Code	Description
200	Returns the list of types Copy Example Value `[ { "Type": "string", "Ancestors": [ "string" ], "Descendants": [ "string" ] } ]`

GET /api/TypeHierarchy/{type}

Get a list of ancestors and descendants for the given type.

Parameters

Name	Type	Description
type (required)	string	The object type

Responses

Code	Description
200	Returns the list of types Copy Example Value `{ "Type": "string", "Ancestors": [ "string" ], "Descendants": [ "string" ] }`
400	The given type is not recognized

PUT /api/TypeHierarchy

Create a new object type.

The Name of a type must be written without special characters, for example "My Type", rather than "My_Type".

Parameters

There are no parameters for this request.

Request Body

Copy

Example Value

{
    "Namespace": "string",
    "Name": "string",
    "Parents": [
        "string"
    ]
}

Responses

Code	Description
200	The type was successfully created
400	A report explaining why the type creation failed

TypeObjects

GET /api/TypeObjects/{type}

Get all objects of a given type.

Parameters

Name	Type	Description
type (required)	string	The object type
object_names	string	A comma-separated list of object names

Responses

Code	Description
200	Returns the list of objects of the given type Copy Example Value `[ { "Object": "string" } ]`
400	The given type is not recognized

GET /api/TypeObjects/{type}/{name}

Get the named object of the given type. When there are multiple matching objects, the first matching object, chosen arbitrarily, is returned.

Parameters

Name	Type	Description
type (required)	string	The object type
name (required)	string	The object name

Responses

Code Description

Code	Description
200	Success If no body then the object does not exist Copy Example Value `[ { "Object": "string" } ]`
400	The given type is not recognized

200

Success

If no body then the object does not exist

Copy

Example Value

[
  {
    "Object": "string"
  }
]

400

The given type is not recognized

PUT /api/TypeObjects/{type}/{name}

Create an object of a given name and type.

Parameters

Name	Type	Description
type (required)	string	The object type
name (required)	string	The object name

Responses

Code	Description
200	The object already exists Copy Example Value `{ "Object": "string" }`
201	The new object was created Copy Example Value `{ "Object": "string" }`
400	The object could not be created (for example, the given type is not recognized)

TypeProperties

GET /api/TypeProperties/{type}

Get the list of basic properties and complex property signatures associated with the given type.

Parameters

Name	Type	Description
type (required)	string	The object type

Responses

Code	Description
200	The list of properties is returned Copy Example Value `{ "Type": "string", "Properties": [ "string" ] }`
400	The given type is not recognized

PUT /api/TypeProperties

Create a new simple property.

Required flags:

Namespace
Name
OwnerType
ValueType

If optional flags are left absent in the request body, the value defaults to false.

Note that if IsName is true then IsUnique must also be true, and IsCellular must be false. The Name of a type must be written without special characters, for example "My Type", rather than "My_Type".

Parameters

There are no parameters for this request.

Request Body

Copy

Example Value

{
    "Namespace": "string",
    "Name": "string",
    "OwnerType": "string",
    "ValueType": "string",
    "IsName": "true",
    "IsCellular": "true",
    "IsUnique": "true"
}

Responses

Code	Description
200	The property was successfully created
400	A report explaining why the property creation failed

Query

If Reporting services are not installed, the query methods return a 422 Unprocessable Entity response.

POST /api/Query/start/{query}

Starts execution of the named query and returns the job ID.

The user must be in one of the roles defined in the query, otherwise a 400 Bad Request is returned.

Request Body

Extra parameters can optionally be included in the body of the POST. The following example is included to start executing a putative query called GetProducts.

Copy

Example Value

POST api/Query/start/GetProducts
{
  "Params": { "Id": { "Type": "String", "Value": "AG" } },
  "Filters": [ {
     "Query": "GetProducts",
     "Column": "ProductCreated",
     "Range" : { "From": { "Type": "Time", "Value":  1739432002000}, "To": { "Type": "Time", "Value": 1739438083000 } }
  } ],
  "Page": { "Size": 100, "N": 1 },
  "Sort": [ { "Asc": "ProductId" } ],
  "NoCount": true,
  "Echo": 12345678
}

Parameters

Field	Details
query (required)	The name of the query
"Params"	Specifies values for a parameter defined in the query. For all values, the "Type" must be one of: "String": Value is a string "Time": Value is the number of milliseconds UTC since 1st January 1970 "Double": Value is a number "Bool": Value is true or false
"Filters"	Specifies a filter constraint on one of the result columns in the query, or any sub-query it uses: "Query" specifies the query on which to apply the filter "Column" specifies the result column to filter against Then one of the following is specified for the filter constraints: “Range”: { “From”: value, “To”: value } Apply the constraint (From <= Query.Column <= To) “Equals”: value Apply the constraint (Query.Column = value) “Contains”: value Value must be type “String”. Apply the constraint (Query.Column LIKE ‘%' + value + '%’)
"Page"	“N” is the row number of the first row to return, starting at 1. “Size” is the maximum number of rows to return. If not specified, all rows will be returned. Be very careful if not specifying "Size" as this could return a lot of rows for some queries.
"Sort"	An array of sort orders is given, and is applied in the order given, before paging is applied: "Asc": column Sorts by the given result column name, in ascending order, so highest result first “Desc”: column Sorts by the given result column name, in descending order, so lowest result first
"NoCount"	If set true, this prevents executing a query that counts to total number of rows without the page option applied and the response will display the count as zero. This is useful if the total number of roles might be very expensive to compute. NoCount defaults to false.
"Echo"	This option can be used to return your own ID from the invocation, if needed in your handler. This is perhaps less relevant in modern asynchronous JavaScript execution.

Responses

Code	Description
200	Copy Example return value `{ "Echo": 12345678, "Id": "xxxxxxxxxx" }` "Id" is the jobid that is then passed to the other methods of Query
400	A query is incorrect or the user is not in one of the roles defined in the query
422	Reporting services are not installed

GET /api/Query/progress/{jobid}

Get the progress and/or results for the query job. You should normally call this until all results have been returned and the result includes "Completed".

Parameters

Name	Type	Description
jobid (required)	string	The Id returned by the start method

Responses

Code Description

Code	Description
200	Success Copy Example Value `{ "Results": { "QueryName": { "Count": 0, "Rows": [ { "ColumnName": v, ... } ] } }, "Sequence": 0, "Id": "string", "Error": "error information on failure" "Completed": true }` The "Results" field is present if the query has returned some results. It will contain a single property corresponding to the query name, with "Count" displaying the total number of rows (if NoCount was not true), and "Rows" displaying the rows, each with column values. Note that this will return all the results read so far, and there may be more to read, in which case subsequent calls to the progress method will return subsequent rows. "Sequence" increments as each set of result row is read. "Id" is the job ID. "Completed" is true when the last set of results is returned. "Error" is set if there has been an error in executing the query, in which case the value will give some information.
400	Details in the "Error" field explain why the query failed

200

Success

Copy

Example Value

{
  "Results": {
    "QueryName": {
      "Count": 0,
      "Rows": [
        { "ColumnName": v, ... }
      ]
    }
  },
  "Sequence": 0,
  "Id": "string",
  "Error": "error information on failure"
  "Completed": true
}

The "Results" field is present if the query has returned some results. It will contain a single property corresponding to the query name, with "Count" displaying the total number of rows (if NoCount was not true), and "Rows" displaying the rows, each with column values.

Note that this will return all the results read so far, and there may be more to read, in which case subsequent calls to the progress method will return subsequent rows.

"Sequence" increments as each set of result row is read.

"Id" is the job ID.

"Completed" is true when the last set of results is returned.

"Error" is set if there has been an error in executing the query, in which case the value will give some information.

400

Details in the "Error" field explain why the query failed

The server discards results for jobs that have completed but have not received a GET progress for 30 seconds.

PUT /api/Query/cancel/{jobid}

Aborts and discards the results for a query job. It is good practice to do this if navigating away from the query UI, for example, or if a filter/parameter/page has changed and you need to issue a new query instead.

Parameters

Name	Type	Description
jobid (required)	string	The Id returned by the start method

Responses

Code	Description
200	Copy Example return value `{ "Id": "xxxxxxxxxx" }`
400	The query job could not be canceled

Schemas

ObjectComplexProperty

Parameter	Type	Value
Object	string	The object in "Type/Name" format nullable: true
PropertySignature	string	The signature for the property in "Key Text(Type)..." form nullable: true
PropertyType	string	The type the property evaluates to nullable: true
PropertyKey	integer($int32)	The position in the signature where is object appears
PropertyRows		All rows for this property, object, key combination nullable: true PropertyRow PropertyKeys: The key columns of the property string PropertyValue: The final or value column of the property string minLength: 1

ObjectLocation

Parameter	Type	Value
Object	string	The object in "Type/Name" format minLength: 1
X	number($double)	The location x coordinate
Y	number($double)	The location y coordinate
Z	number($double)	The location z coordinate
Theta	number($double)	The orientation in radians (optional) nullable: true

ObjectProperty

Parameter

Type

Value

Object

string

The object in "Type/Name" format

nullable: true

PropertyName

string

The property name

nullable: true

PropertyValue

string

The propery value

nullable: true

ObjectTag

Parameter	Type	Value
Object	string	The object in "Type/Name" format nullable: true
Tag	string	The tag Id in dashed decimal form nullable: true
Battery	string	The tag battery status. Possible values include OK, Warning, Failing and Unknown. nullable: true
Activity	string	The tag activity. Possible values include Active or Inactive. nullable: true
TagType	string	The tag type. nullable: true
TagPosition		Vector3D X: number($double) Y: number($double) Z: number($double)

ProblemDetails

Parameter	Type	Value
Type	string	nullable: true
title	string	nullable: true
status	integer($int32)	nullable: true
detail	string	nullable: true
instance	string	nullable: true

PropertyRow

Parameter

Type

Value

PropertyKeys

string

The key columns of the property

PropertyValue

string

The final or value column of the property

minLength: 1

TagModel

Parameter	Type	Value
Tag	string	The tag Id in dashed decimal form nullable: true
Battery	string	The tag battery status. Possible values include OK, Warning, Failing and Unknown. nullable: true
Activity	string	The tag activity. Possible values include Active or Inactive. nullable: true
TagType	string	The tag type. nullable: true
Object	string	The object in "Type/Name" format nullable: true

TypeHierarchy

Parameter	Type	Value
Type	string	nullable: true
Ancestors	string	nullable: true
Descendants	string	nullable: true

TypeObject

Parameter

Type

Value

Object

string

The object in "Type/Name" format

nullable: true

TypeProperties

Parameter

Type

Value

Type

string

The object type

nullable: true

Properties

string

The type's properties

nullable: true

Vector3D

Parameter	Type	Value
X	number($double)	The location x coordinate
Y	number($double)	The location y coordinate
Z	number($double)	The location z coordinate
