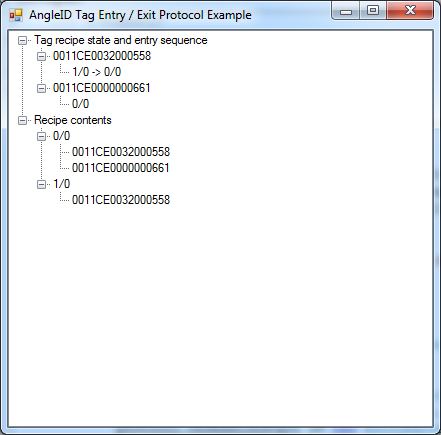

GUI Tree View Client

                    #region Recipe / Tag containment state and protocol event handlers
/// <summary>
/// A flag to tell us whether we have yet been contacted by a sensor.
/// </summary>
bool AwaitingInitialConnection = true;

// All the recipes mentioned in this session and the tags in them.
// If we were expecting huge numbers of tags we would use some kind
// of set structure to represent the tags matching each recipe, but
// in this case we just stick with the list where find is O(N).
Dictionary<uint, LinkedList<ulong>> RecipeTags = new Dictionary<uint, LinkedList<ulong>>();

// All the tags mentioned in this session and a list of the recipes
// each one is in, in chronological order of entry.  This demonstrates
// how we can use recipe tag/entry events to determine 'direction of
// travel'.
Dictionary<ulong, LinkedList<uint>> TagRecipes = new Dictionary<ulong, LinkedList<uint>>();

/// <summary>
/// Generate a 32 bit key out of two 16 bit ids
/// </summary>
/// <param name="id1">The recipe Id 1</param>
/// <param name="id2">The recipe Id 2</param>
/// <returns>The 32 bit recipe key generated from (id1,id2)</returns>
uint Key(ushort id1, ushort id2)
{
    uint result = id1;
    result <<= 16;
    result |= id2;
    return result;
}

/// <summary>
/// Extract recipe ids from a 32 bit key
/// </summary>
/// <param name="key">The 32 bit recipe key</param>
/// <param name="id1">The recipe Id 1</param>
/// <param name="id2">The recipe Id 2</param>
void ExtractIdsFromKey(uint key, out ushort id1, out ushort id2)
{
    id1 = (ushort)(key >> 16);
    id2 = (ushort)(key & 0xFFFF);
}

/// <summary>
/// Process tag entry or exit commands.
/// </summary>
/// <param name="insert">The mode -- insert if true, remove if false</param>
/// <param name="key">A key made from the two tag ids</param>
/// <param name="tags">The list of tags to insert/remove</param>
void InsertOrRemove(bool insert, uint key, List<ulong> tags)
{
    // Note that we generate a set of tags for the recipe contents
    // even if we have an exit event -- this is because the protocol
    // is able to assert the existence of a recipe (Id1,Id2) pair
    // by sending an exit event, and if a recipe has no matching tags
    // at start up then this is what it will do.  The fact that there
    // is a recipe, but it is empty, is still potentially useful at
    // the application level.
    if (!RecipeTags.ContainsKey(key))
        RecipeTags[key] = new LinkedList<ulong>();

    // Insert or remove tags to/from the recipe contents as appropriate.
    LinkedList<ulong> contents = RecipeTags[key];
    foreach (var tag in tags)
        if (insert)
        {
            if (!contents.Contains(tag))
                contents.AddLast(tag);
        }
        else
        {
            LinkedListNode<ulong> node = contents.Find(tag);
            if (node != null)
                contents.Remove(node);
        }

    // Insert or remove to/from the trail of tag recipes.
    foreach (var tag in tags)
        if (insert)
        {
            if (!TagRecipes.ContainsKey(tag))
                TagRecipes[tag] = new LinkedList<uint>();
            TagRecipes[tag].AddLast(key);
        }
        else
        {
            if (TagRecipes.ContainsKey(tag))
            {
                LinkedList<uint> recipes = TagRecipes[tag];
                LinkedListNode<uint> node = recipes.Find(key);
                if (node != null)
                    recipes.Remove(node);
            }
        }
}

/// <summary>
/// Session start event handler.  This is executed in the server thread
/// so any processing must be reasonably short and, for WinForms programs,
/// any GUI operations must be queued for evaluation on the main thread.
/// The state will be accessed by this thread and the GUI thread, so we need
/// to use some mutual exclusion to protect it.
/// </summary>
void Protocol_OnSessionStart()
{
    lock (RecipeTags)
    {
        AwaitingInitialConnection = false;
        RecipeTags.Clear();
        TagRecipes.Clear();
    }
    InvokeDisplayUpdate();
}

/// <summary>
/// Tag/recipe exit event handler.  This is executed in the server thread
/// so any processing must be reasonably short and, for WinForms programs,
/// any GUI operations must be queued for evaluation on the main thread.
/// The state will be accessed by this thread and the GUI thread, so we need
/// to use some mutual exclusion to protect it.
/// </summary>
void Protocol_OnExit(ushort id1, ushort id2, List<ulong> tags)
{
    lock (RecipeTags)
    {
        InsertOrRemove(false, Key(id1, id2), tags);
    }
    InvokeDisplayUpdate();
}

/// <summary>
/// Tag/recipe entry event handler.  This is executed in the server thread
/// so any processing must be reasonably short and, for WinForms programs,
/// any GUI operations must be queued for evaluation on the main thread.
/// The state will be accessed by this thread and the GUI thread, so we need
/// to use some mutual exclusion to protect it.
/// </summary>
void Protocol_OnEntry(ushort id1, ushort id2, List<ulong> tags)
{
    lock (RecipeTags)
    {
        InsertOrRemove(true, Key(id1, id2), tags);
    }
    InvokeDisplayUpdate();
}
#endregion
